Stranded Loose Tube Non-metallic Strength Member Non-armored Optical Fiber Cable(GYFTY53)

Detailed Product Description

Stranded Loose Tube Non-metallic Strength Member Non-armored Optical Fiber Cable(GYFTY53)
APL moisture barrier

Stranded Loose Tube Non-metallic Strength Member Non-armored Optical Fiber Cable(GYFTY53)

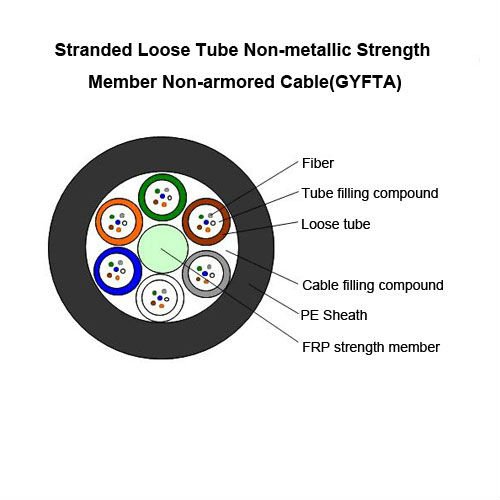

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, the cable is completed with a PE sheath.



Features:

• Good mechanical and temperature performance
• High strength loose tube that is hydrolysis resistant
• Special tube filling compound ensure a critical protection of fiber
• Specially designed compact structure is good at preventing loose tubes from shrinking
• PE sheath protects cable from ultraviolet radiation
• The following measures are taken to ensure the cable watertight:
• Single Fiber Reinforced Plastic as the central strength member
• Loose tube filling compound
• 100% cable core filling
• APL moisture barrier
• Complies with Standard YD/T 901-2001 as well as IEC 60794-1

Electrical characteristics :



Material:

 Jacket material: PE

Fiber Type Option:

• OS1-9/125 G-652.D Single mode fiber
• OM1-62.5/125 Multimode fiber
• OM2-50/125 Multimode fiber
• OM3-50/125 Multimode fiber
• OM4-50/125 Multimode fiber
